Description/ ModelSpeedTechnicalFormat Range Applications Benefits

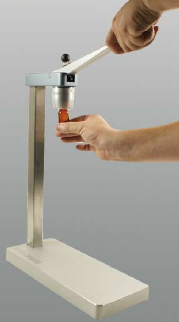

C45
Fermpress Lever Operated Crimper
Fermpress Lever Operated Vial Crimper
10 crimps/min8-32mm Aluminium seals
  • Vial Crimping of Aluminium Crimp Seals
  • Simple Hand Operation
  • Fermpress Crimp Head
  • Exchangeable crimp head for different sizes
C400
Two Hand Operating Crimping Unit
Pneumatic Vial Crimper
10 crimps/min8-32mm Alumium seals
  • Aluminium Cap Seals for Vials and Stoppers
  • Press on Caps
  • Double button safe operation
  • Crimp or Press on
  • Exchangeable heads
  • Table for containers
  • Annex 1 Compliant

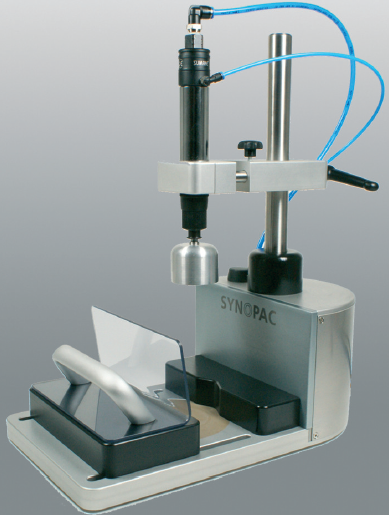

S-245
S-400
S-650
Lab Scale Capping
Lab Scale Cappers
600 Units/hour
1400 units/hour
2000 units/hour
Pneumatic screw motor with push start

Left /right reversible drive

Continuously adjustable torque

Skid resistant grip plate

  • Capping or Vials
  • Closing of Bottles or Containers
  • Compact
  • Pneumatic or Electric Versions Available
  • GMP Compliant
  • Easy and fast handling
  • Changeable screw head, no tools needed
C650
Rotary Fermpress Vial Crimper
Rotary Fermpress Vial Crimper
20 crimps/min8-32mm Alumiunium vial seals
Containers size: 3ml < 100ml
  • Vials
  • Stoppered Bottles
  • Flip-on Caps
  • Exchangeable Crimping Heads or Press on Capper
  • Simple Compact Operation
  • Fast Changeover
  • Caps can be hand or automatically fed
  • GMP, CE and Annex 1 compliant
  • Can be used in Sterile Environment
C46
C220
C650
Lab Scale Crimping Machines
Lab Scale Crimping
manual
manual
1200 per hour
Pneumatic operation3 ml-1000 ml Vials
  • Vial Crimping
  • Built for modern laboratories
  • No electricity needed
  • Excellent mobility (small and light)
  • For modern laboratories or manufacturers
  • Fast change of crimp head
  • GMP and Annex 1 conform
  • Sterilisable
  • Easy handling
  • Fast change of crimp head

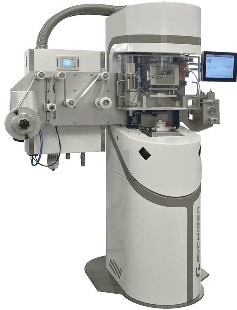

RD06

Lab scale Seal and Punch
4 cycles per minuteServo controlled movements

One step seal and punch

  • Foil sealing of Pre-made containers
  • Medical Device Sealing
  • Diagnostic Cartridges
  • Coffee Capsules
  • Accurate foil placement
  • Repeatable results
  • Recipe storage of parameters for heating and sealing
  • Fast Run in times
AeroSAM
Lubricant Spray Actuator Placement
Lubricant Spray Actuator Placing Machine
60 Cans Per MinuteSiemens PLC - Electro pneumaticup to 320 mm High cans (Taller cans on Request)
  • Lubricant spray actuators with spray tubes
  • Manual or automatic feeding of actuators
  • Compact footprint
  • Optional presence control
  • Optional ATEX compliance
AVM 728
Buttoner, 60 Buttons Per Minute
Buttoning Machine
60 Cans Per MinuteRake Driven Machine, rake easily exchanged to run other formats

10 Minute Changeover

Atex rated version available

Can be extended to add other functions such as fill, cap and air rinse


Cans up to 300 mm high and 65 mm wide, Others on request
  • Buttoning of Aerosol Cans
  • L Shaped or protruding buttons as well as standard buttons
  • Ability to button shaped and oriented buttons or nozzles as well as normal buttons
  • Fast Changeover
  • Small Footprint
  • Available as buttoner with capping station to place caps
  • Atex rated version available
  • Optional Labelling station

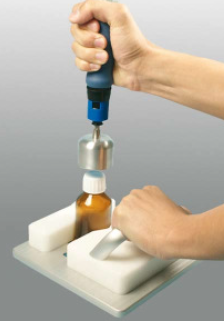

S245
Manual Capping Equipment
Manual Capping Equipment
10 bottles/minSubject to screw head
  • Screw caps
  • Pneumatic drive
  • Easy and fast handling
  • Left/right reversable drive
  • Continuously adjustable torque
  • Skid resistant gripp plate
  • Changable screw head, no tools needed
S400
Table Top Capping Machine
Table Top Capper
20 bottles/minDia. < 100mm
Height < 230mm
  • Screw caps
  • Compact and space saving design
  • Tool-less changeover within 1 minute
  • Pneumatic drive with push start, torque controlled
  • Available with buffer plate for capping with buffered tops
  • GMP conform construction
  • Clean room suitable
S650
Table Top Capping Machine
Table Top Capping Machine
Max. 33 bottles/min (2000/hour)Dia. < 65mm
Height < 140mm
  • Screw caps
  • Space saving monoblock setup
  • Automatic bottle transport by rotary star wheel
  • Easy and fast format change, no tools needed
  • Pneumatic screw motor with push start, torque controlled
  • Suitable for clean rooms and isolators
AVM 738

Capping Machine Spindle
Rotary Capping Machines
60 bottles/minFlexible, modular Capping Machine

Several options available including integrated labelling, induction sealing

Dia. < 90mm
Height: 40-215mm
  • ROPP Caps
  • CRC Caps
  • Aerosol Buttons
  • Press on Caps
  • Corks
  • Special shaped caps and containers
  • Orientation of closure to container
  • Integrated labelling possible
  • Press-on, Screw or Crimp
AVR 200
Linear Capping Machine
Linear Rake Style Capping Machine
50 cycles/min

2-3-4 up (100, 150, 200)
Dia. < 90mm
Height < 180mm
  • Nasal Sprays
  • Lotion Pumps
  • Buttons
  • Press on Caps
  • ROPP
  • Corks
  • Automatic Height Changeover via HMI
  • Universal rake for all bottle diameters
  • No in-feed change parts
  • Innovative Sorting bowls with reduced format parts
  • Accessibility
  • Modular Stations
