Semi-Automatic Sealing Machine for Thermoformer

Model SpeedFormat Range
Super – MAXI XL
Super MAXI
MAXI
Up to 6 cycles per minute subject to operator800 x 500 x 120 mm, 47KN
500 x 350 x 120 mm, 47KN
250 x 350 x 80 mm, 18KN

Pictures


QuickBlister Sealing Machine - Raupack UK and Ireland

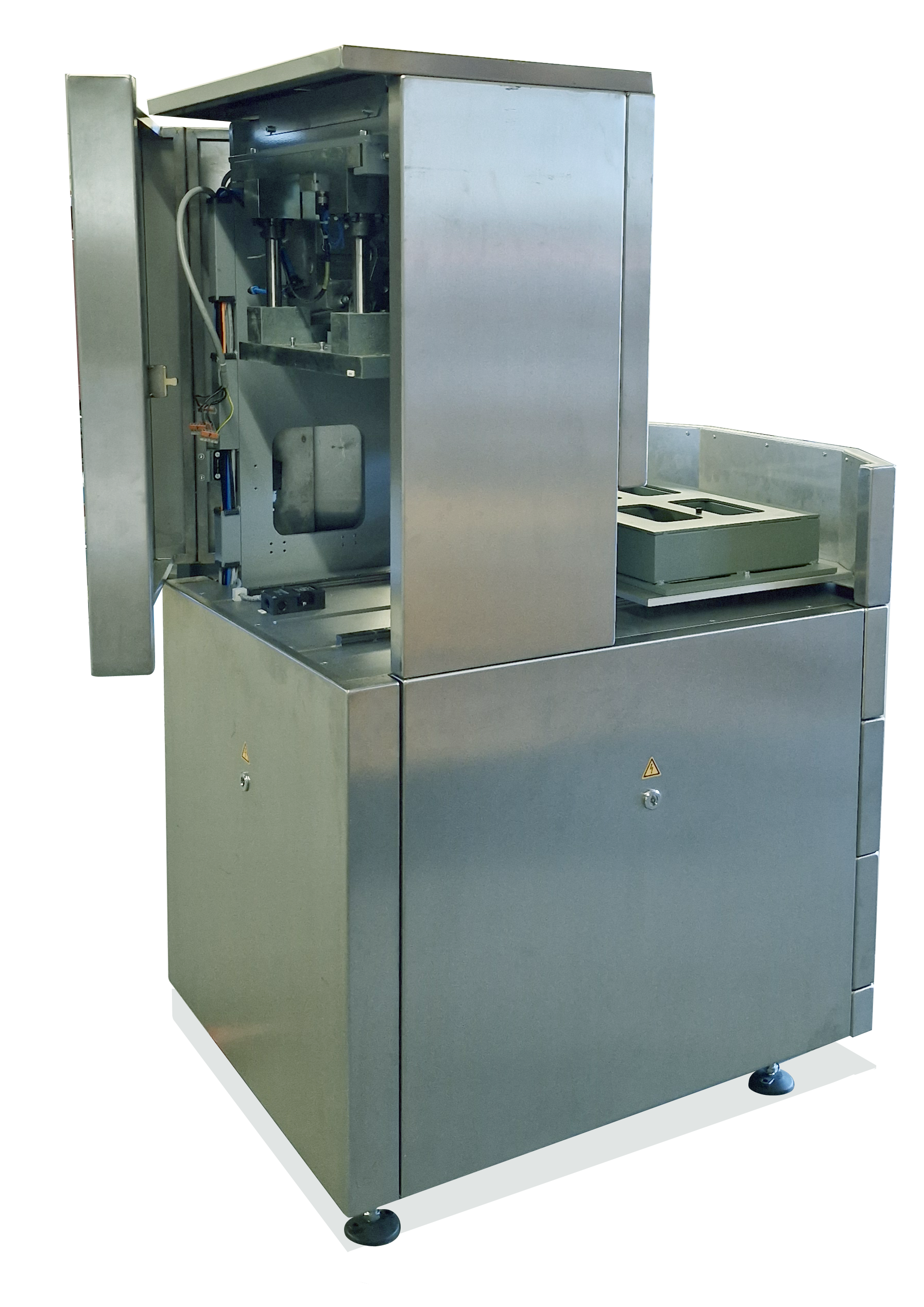

QuickBlister Sealing Machine

Quick Blister for Medical Devices Raupack UK and IrelandQuick Blister for Medical Devices Raupack UK and IrelandQuickBlister Sealing Machine Raupack UK and Ireland

The QuickBlister Sealing machine is a mobile semi-automatic blister tray sealing machine designed to seal the lid foil onto pre-formed blister trays. It comes in 3 sizes to accommodate different dimensions of blister.

The sealing drawer is opened and the thermoformed blister trays with the to be packaged products are inserted into their respective cavities inside sealing tool. The trays are covered with the lidding foil. The loading drawer with the tool is pushed into the sealing station, which automatically starts the sealing process. The sealing tool then closes pneumatically. Lidding foils and blister trays are sealed using high pressure and an adjustable temperature. Once the sealing process is complete, the sealing tool opens and the sealing drawing can be retracted. The finished blister packs are removed manually and reloaded as described above.

Depending on the dimensions of the blister packs, arrays of blister packs can be sealed in a single operation.

A theoretical output of up to 6 cycles per minute is possible subject to:

- Number of cavities per sealing process - Blister material (lidding foil/card) - Sealing temperature - Sealing time and pressure

Options

  • Automated loading drawer: movement of the sealing drawer with a pneumatic cylinder, start release with a 2-hand safety circuit
  • Integrated Drawers for convenient storage of tools
  • Pressure increase to allow pressure for smaller models to match the pressure for larger models
  • Automatic tool recognition
  • Audit trail function to CFR21 Part 11
  • Full Validation package including: FDS, FAT/SAT, Deviation list/report, IQ tests, OQ tests, Machine documentation, FMEA

    Applications

    • Medical Device Packaging
    • Syringe Packaging
    • Injector Pen Packaging

    Main Benefits

    • Mobile Design
    • Fully adjustable sealing parameters
    • Integrated storage for tooling

    Technical Features

    • Continuously adjustable sealing pressure from 10 to 47 kN
    • Continuously adjustable sealing temperature from 10 to 200 °C
    • Continuously adjustable sealing time from 0.1 to 999 sec.
    • All process-relevant parameters can be validated.
    • Recipe management for up to 50 recipes
    • Support drawer with tool holder so that the sealing tools can be easily exchanged
