Bottle String Tying Machine

String Tying Machines, Paper Applicators



Rotary String Tying Machine
Rotary String Tying Machine - Raupack UK and Ireland

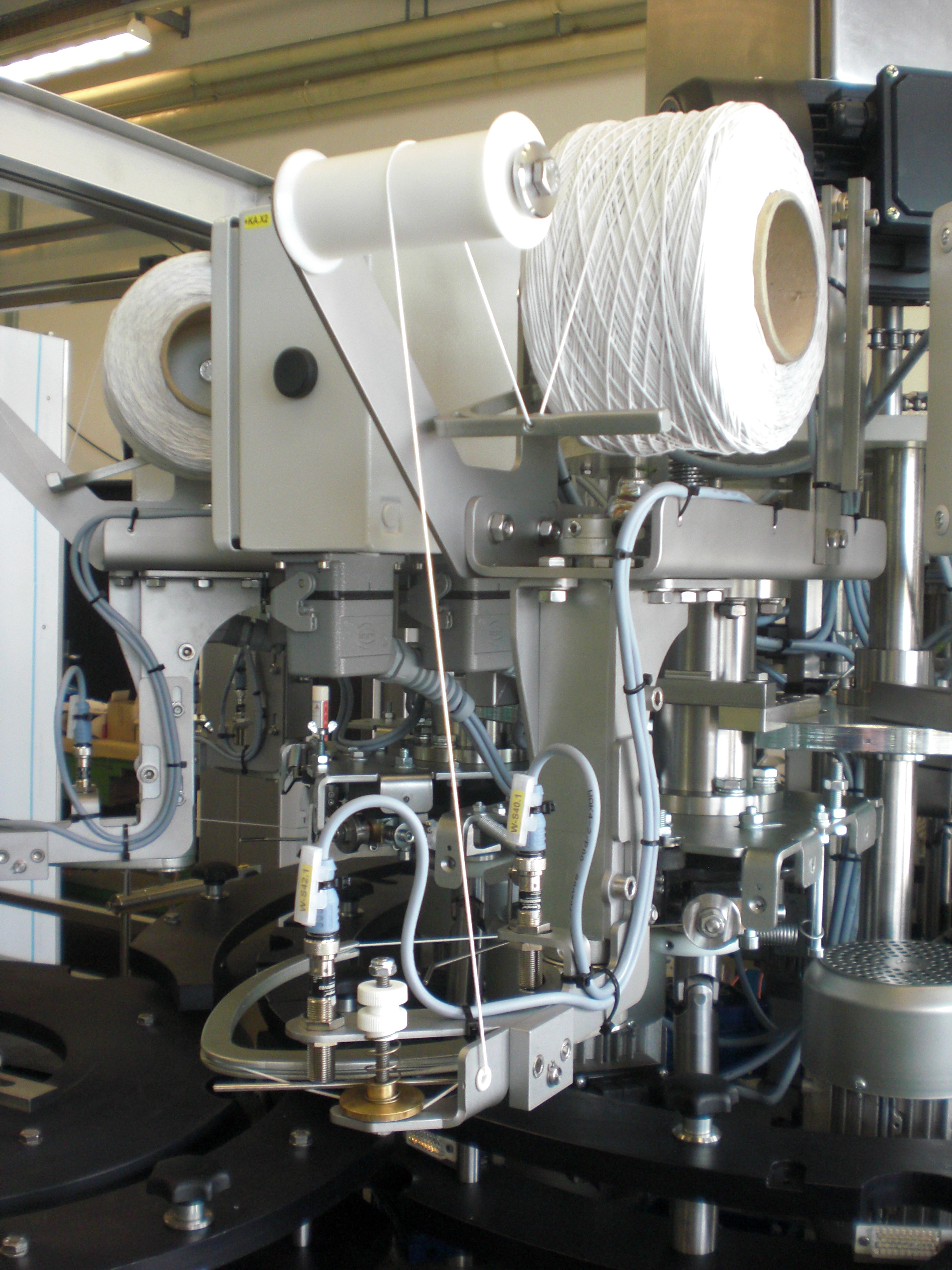

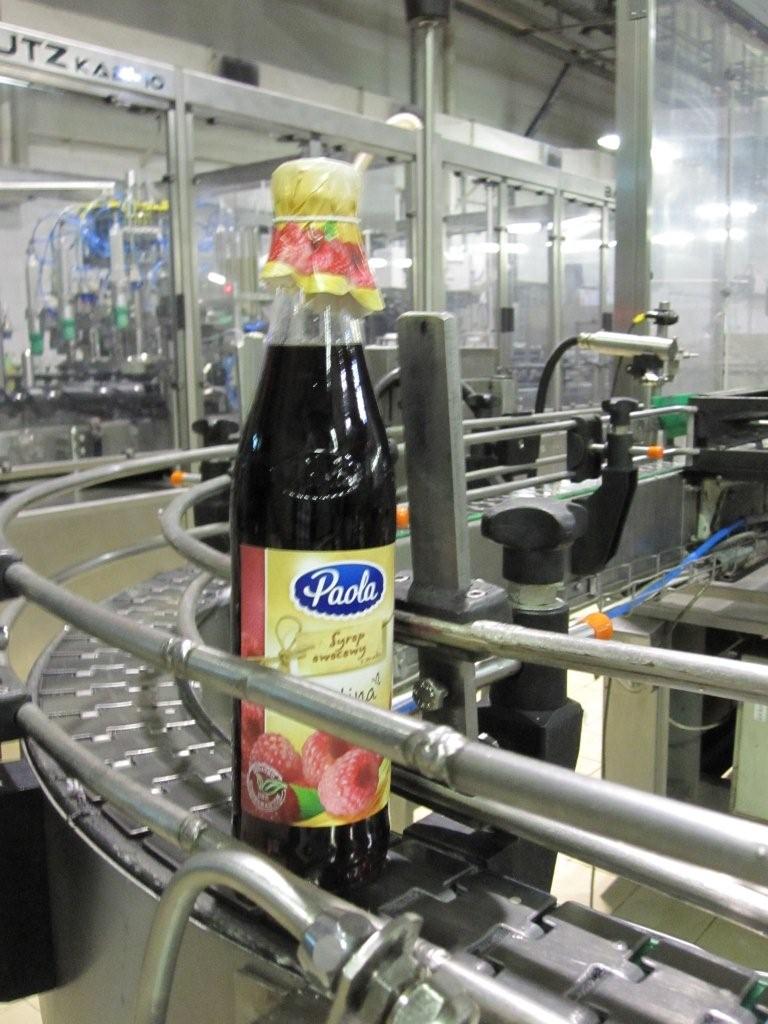

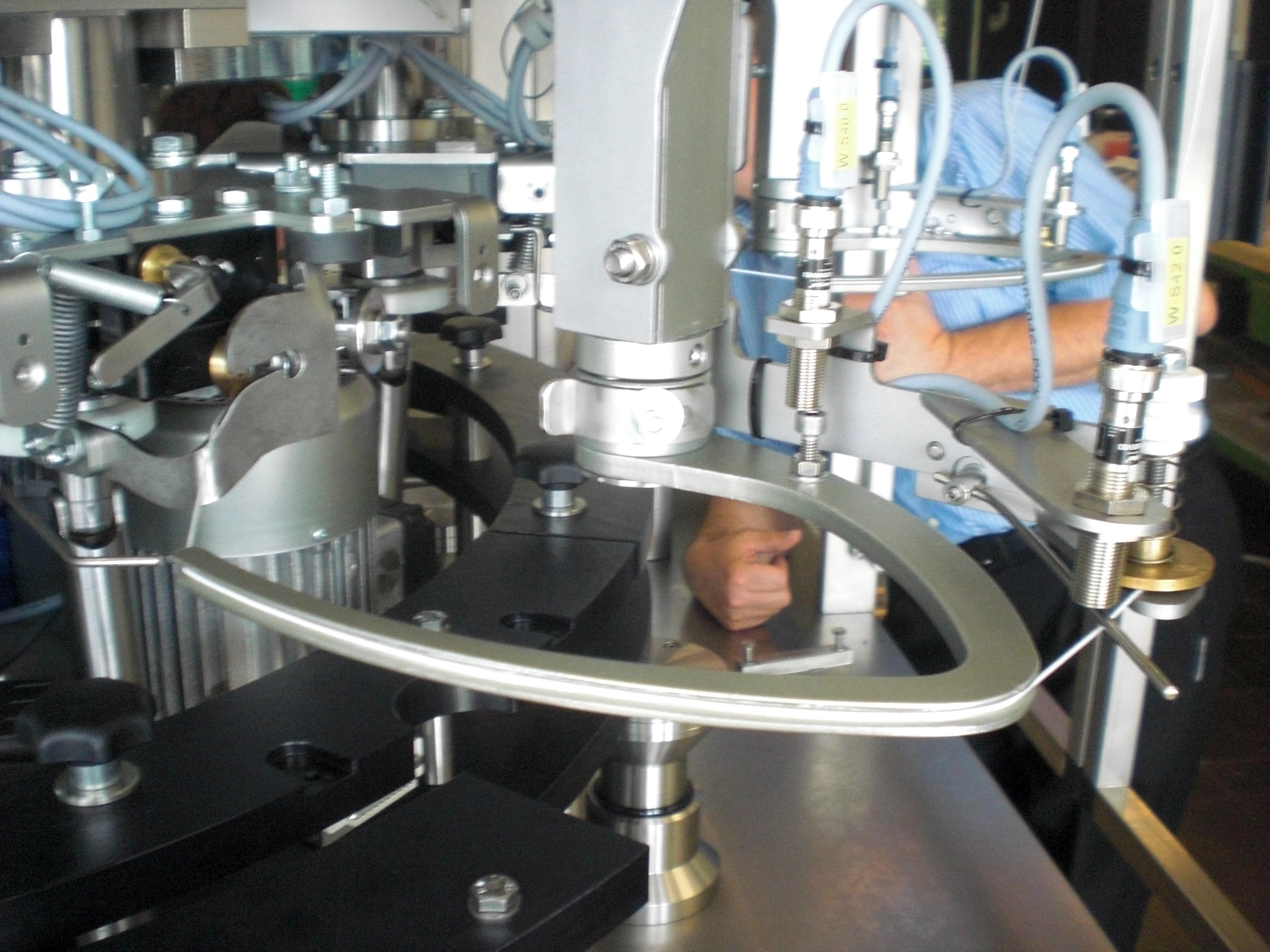

Bottle with hood and string Raupack UK and IrelandString Tying Machine Raupack UK and IrelandString Tying Unit Raupack UK and IrelandRotary String Tying Machine Raupack UK and Ireland


Special products present unique challenges

In the drinks industry a customer required us to wrap a round disk over a screw cap on a fruit juice bottle and apply an elasticated String to the bottle neck. This was achieved in continuous motion at 100 bottles per minute. A two turret rotary machine fitted turrets for placement and tying. Bottle handling relied on designs used for capsule applying machine. Multiple tying stations were built on to the second turret.

As a pre-cursor to this work a semi-automatic tying station was developed to minimise the risk of automation. This enabled us to calculate the cycle time per head and optimise the machine to the customers output requirements.


  • Tying string onto bottles
  • Paper disc application

Main Benefits

  • Special solutions
